HOME > PRODUCTS > Sling Swage Sleeve

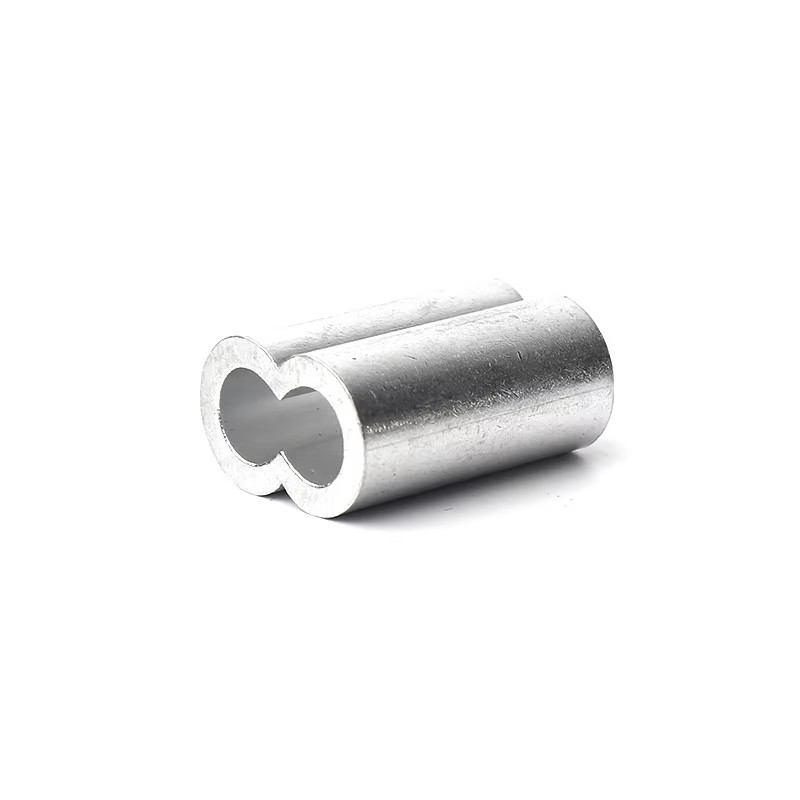

8-Shaped Double-Hole Aluminum Sleeve

8-Shaped Double-Hole Aluminum Sleeve Wire Rope Sling Ferrule
material: Aluminium
type: wire rope sling
Usage: Clamp Wire Rope
packing: Bag, Customizable
Share:
Online inquiry
Description
Description


Steel wire rope double hole aluminum sleeve

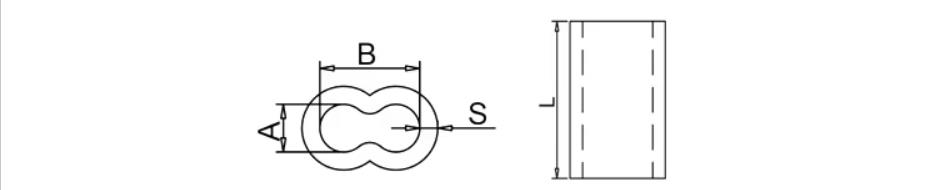

Size
A(mm)
B(mm)
L(mm)
S(mm)
Thousand pieces of weight
1mm
1.3
2.6
8
0.7
0.151
1.2mm
1.4
2.8
9.5
0.95
0.292
1.5mm
1.9
3.8
9
1.2
0.352
1.8mm
2.1
4.2
9
1.2
0.4
2m
2.5
5
9
1
0.45
2.5mm
3
6
12
1.5
1.1
3mm
3.6
7.2
15
1.9
1.98
4mm
4.7
9.4
16
2
2.5
5mm(thin)
5.8
11.6
22
2.2
4.6
5mm(thickness)
5.5
11
26
2.8
7.2
5.5mm
6.2
12.4
27
3.2
10
6mm(thin)
6.9
13.8
26
2.4
7.1
6mm(thickness)
7.2
14.4
29
3.2
11.8
8mm
9.5
19
32
2.8
21
10mm
11
22
27
4
28.2
12mm(thin)
13.5
27
40
4.2
38.1

  1. Aluminum products are sturdy and cannot be reused. If you want to reinforce the product, you can increase the number of locks.It is recommended to use at least two clamps at one end of the PVC coated steel wire rope

  2. The product is processed and manufactured using thick aluminum tubes,Eliminate the use of thin materials for size reduction,Stronger load-bearing, sturdy, safe, sturdy, and durable,Commonly used for installing and fixing the end of steel wire rope cables

  3. The product is used in conjunction with steel wire rope, making it convenient and fast,Aluminum sleeve is high-quality and affordable,Easy to assemble,Use a hammer to strike,Or hydraulic pliers can be used to lock,Punch machine processing is more beautiful and reliable

  4. Various specifications available for customers to choose from and accept customization
