Xinnan Wire Mesh


Aviary Mesh

Place of Origin: China
Brand Name: XINAN
Certification: CE
Material: Stainless steel ,304,316 grade
Rope: Stainless steel 7 x 7 and 7 x 19
Size: As your requirement
Feature: Hand knitting, Light weight, high-strength, rustless, eco-friendly, safety, long service life, Corrosion resisatant, easy -assembly
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Supply Ability: 8000m2/week

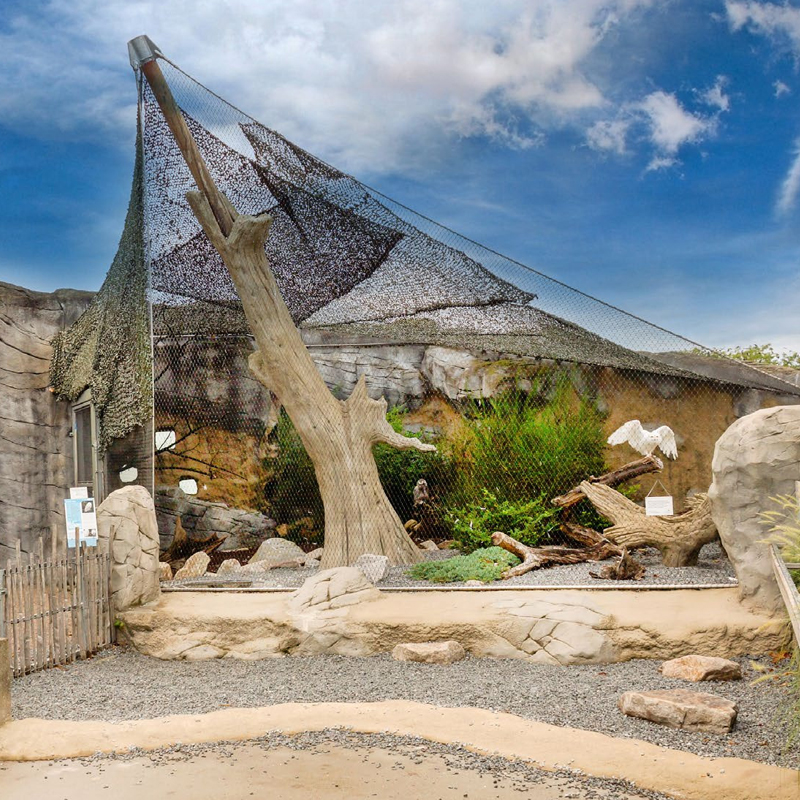

Stainless Steel Aviary Mesh is an extremely strong containment netting suitable for Aviary of all kinds of birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.
Aviary Mesh is available in sizes from 25 x 25mm (1" x 1") to 125 x 125mm (5" x 5"). In wire from 1.2mm to 3.2mm (3/64" to 1/8") in stainless steel. The hand woven netting is manufactured in 7 x 7 type 304 stainless steel to your requirements.


Stainless Steel Wire Rope Mesh

The mesh width OW,refer to the distance from the middle of one ferrule to the next ferrule along the cable, net geometry is optimized, when the resulting diameter can be divided into two equilateral triangles with 60 corners.

Mesh Aperture

Wire Diameter

OW x OH (mm)

1.2 mm

1.5 mm

2.0 mm

3.0 mm

4.0 mm

20 x 35

XN-1220 F

25 x 45

XN-1225 F

XN-1525 F

35 x 61

XN-1235 F

XN-1535 F

XN-2035 F

40 x 70

XN-1240 F

XN-1540 F

XN-2040 F

XN-3040 F

50 x 90

XN-1250 F

XN-1550 F

XN-2050 F

XN-3050 F

XN-4050 F

60 x 105

XN-1260 F

XN-1560 F

XN-2060 F

XN-3060 F

XN-4060 F

70 x 120

XN-1270 F

XN-1570 F

XN-2070 F

XN-3070 F

XN-4070 F

80 x 140

XN-1280 F

XN-1580 F

XN-2080 F

XN-3080 F

XN-4080 F

100 x 175

XN-12100 F

XN-15100 F

XN-20100 F

XN-30100 F

XN-40100 F


Advantage for stainless  bird netting?
1. The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110, 000 PSI)
7. This product can bear the heavy snow and the gale very much.
8. Without toxic material, safety, environmental protection.
